             TC8 Temperature Controller
TC8 Temperature Controller




TC8 Temperature Controller

The Model TC8 is a self-contained Temperature Controller for use with the thermoelectric coolers. Using a single 5 Volt power supply, the TC8 operates in conjunction with a thermistor, located in the detector assembly, to precisely measure and regulate the temperature of the cooler detector. The TC8 is also available with detector heat sink and optional hybrid amplifier in the CM21 and the CMAMP assemblies.


Model ​                  TC8
Supply Voltage                +5.0 ± 0.25 VDC @ 2.0A
Maximum Current to TE Cooler                1.5A @ 5V
Detector Temperature                Ambient to -80°C
Temperature Stability                ± 0.5°C
Ambient Temperature                +10°C to +40°C
Stabilized Temperature Indication                LED
Recommended for Detectors:                All Judson TE cooled detectors




 Click for more TC8 ​information.

Heat Sink Assemblies

CMAMP Assembly HS1 Assembly
CMAMP AssemblyHS1 Assembly

A thermoelectrically cooled detector requires a heat sink to dissipate the heat generated by the cooler, an amplifier to amplify the detector signal to a usable level and a temperature controller to hold the detector at a constant temperature. Judson TE cooler accessories are designed to give solutions for these problems to our customers.

HS1 Assembly (Heat Sink Assembly for TO-37, TO-66 and TO-3 Packages)
The HS1 series is designed to provide heat sinking and cabling to simplify integrating a TE cooled detector into an existing system, and is designed to mate with either the TC-5 or TC-8 temperature controllers.

HSAMP Assembly (Heat Sink and Amplifier Assy for TO-37, TO-66 and TO-3 Pkgs)
The HSAMP series is designed to provide both heat sinking and signal amplification for our TE cooled photovoltaic product line. This allows Judson to help a customer to choose the best amplifier for a particular detector and system. The HSAMP includes a hybrid PA-5, PA-6 or PA-7 preamplifier and is designed for easy connection to the customer's optical system and the TC-8 Temperature Controller.

accessories_06

CM21 Assembly (Heat Sink and TC8 Temperature Controller for TO-37, TO-66 and TO-3 Pkgs)

The CM21 assembly is designed to provide heatsinking and temperature control for Judson's TE cooled photoconductive and photovoltaic detector product line. It is designed to simplify integrating a TE cooled detector into an existing system with a customer supplied amplifier. The CM21 assembly is ideal for customers who have designed their own amplifier for their system.

CMAMP Assembly (Heat Sink Amplifier and TC8 Temperature Controller for TO-37, TO-66 and TO-3 Pkgs)

The CMAMP series is designed for customers that would like a fully integrated detector module. It includes heatsinking, detector signal amplification and temperature control. The CMAMP assembly requires an external power supply that provides both +5V @ 2.0 amperes and ±15 volts at 100mA. The CMAMP assembly is an ideal platform for evaluating TE cooled detectors for the first time. Custom mechanical assemblies including temperature control, detector amplification and heat sinking are available on an OEM basis.

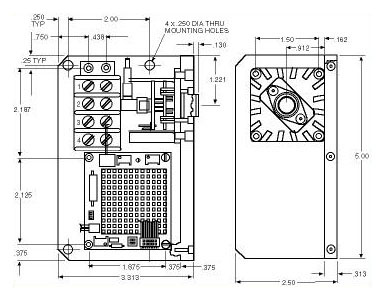

accessories_07





Model



HSAMP1-TO66-TC6-PA5



HSAMP1-TO66-TC6-PA7



HSAMP1-3CN-TC6-PA7



Units

Part Number

490114

490140

490143

Description

Heat sink/Socket/PA-5 amplifier/Cables for TO-66 PV detectors/TC6 controller

Heat sink/Socket/PA-7 amplifier/Cables for TO-66 PV detectors/TC6 controller

Heat sink/Socket/PA-7 amplifier/Cables for 4-stage PV detectors/TC6 controller

Transimpedance

Gain:

(Switch Selected)

High

Med

Low

1E5

1E7

1E7

µ/A

1E4

1E6

1E6

1E3

1E5

1E5

Bandwidth

RD>10K,CD<0.2nF

@ High Gain

@ Med Gain

@ Low  Gain

200

8

8

KHz

200

60

60

200

150

150

Input Offset Voltage (Vos)

±40

±100

±100

µV

Input Bias Current (ib)

±90

±.005

±.005

nA

Voltage Noise Density (en)@1KHz

1.5

8

8

nV/ÖHz

Voltage Noise from 0.1 to 10Hz

.035

1.6

1.6

µV

Current Noise Density (in) @ 1KHz†

1.6

.04

.04

pA/ÖHz

Output Impedance

Maximum Output Voltage

Power Requirements

< 100

W

±15V

p-p

+15V and -15V @ 10mA

Recommended for Detector Series:

J12, J12TE1

J12TE2, J16 Series

J12TE2, J16 Series

† At high gain setting​

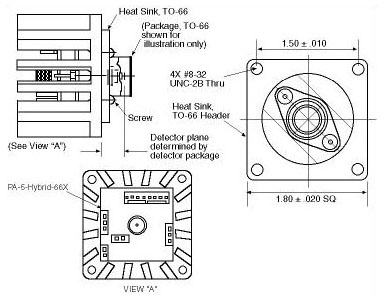

accessories_08





Model Number



Part Number



Heat sink



Package Socket



Cables



Amplifier



Temp. Controller



Power Requirements

HS1

600613-1

HS1

9 pin TO-66 66G, 66S, 66C, 66GE, 66D

N/A

N/A

N/A

N/A

HS1-T066-TC6

490117

Detector-BNC Cooler to TC6

HS1-T066-TC5

490094

Detector-BNC Cooler to TC5

HS1-37S-TC6

490148

6 pin TO-37

Detector-BNC Cooler to TC6

HS1-3CN-TC6

490120

8 pin TO-3 3CN

HS1-3C12-TC6

490151

3C12

HS1-T066-TC6-PS

490138

9 pin TO-66 66G, 66S, 66C, 66GE, 66D

Detector-Lemo Cooler to TC6

HSAMP-T066-TC6-PA5

490114

From Amp SMA to BNC Cooler to TC6

PA-5-HYBRID

+/-15V @10mA

HSAMP-TO66-TC6-PA6

490147

PA-6-HYBRID

HSAMP-T066-TC6-PA7

490140

PA-7-HYBRID

HSAMP-3CN-TC6-PA7

490143

8 pin 3CN

CM21 ASSEMBLY-TO66

490102

CM1

9 pin TO-66 66X

Detector-BNC

N/A

TC6

+5V +/- .25 @ 2A

CM21 ASSEMBLY-TO66-PS

490118

Detector-Lemo

CM21 ASSEMBLY-TO37

490149

6pin TO-37

Detector-BNC

CM21 ASSEMBLY-3CN

490122

8pin 3CN

CM21 ASSEMBLY-3C12

490150

12 pin TO-3

CMAMP-T066-PA5

490130

9 pin TO-66 66X

12" RG174 SMA-BNC

PA-5-HYBRID

+5V +/- .25 @ 2A +/-15V@10mA

CMAMP-T066-PA6

490146

PA-6-HYBRID

CMAMP-T066-PA7

490139

PA-7-HYBRID

CMAMP-3CN-PA5

490132

8 pin TO-3 3CN

PA-5-HYBRID

CMAMP-3CN-PA7

490141

PA-7-HYBRID​
